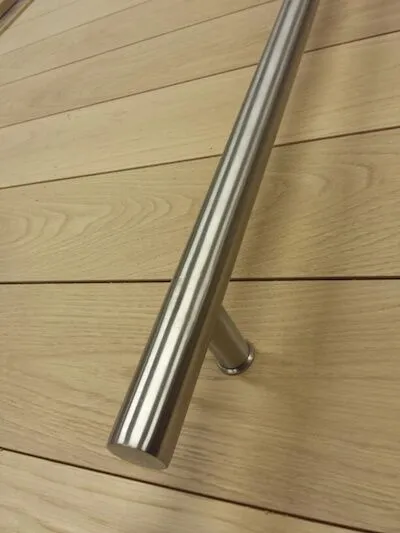

Modern Bar 3301

• Hardware Prep: Prep onsite only
• Available Finishes: Flat Black, Brushed Stainless Steel
• Available Lengths: 35-7/16″, 47-1/4″, 70-7/8″
• Post Diameter: 1-1/4″

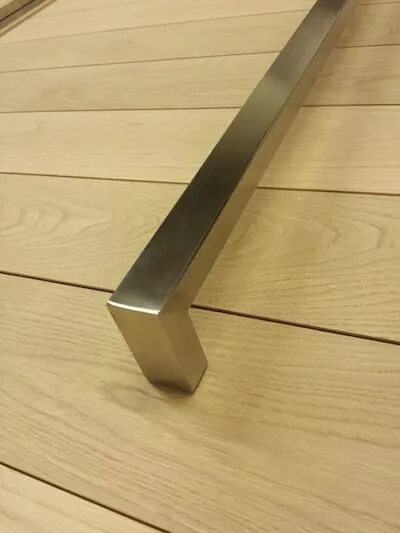

Square Handle 7910

• Hardware Prep: Prep onsite only
• Available Finishes: Flat Black, Brushed Stainless Steel
• Available Lengths: 35-7/16″, 47-1/4″, 70-7/8″
• Post Dimensions: 1-1/2″ x 1″

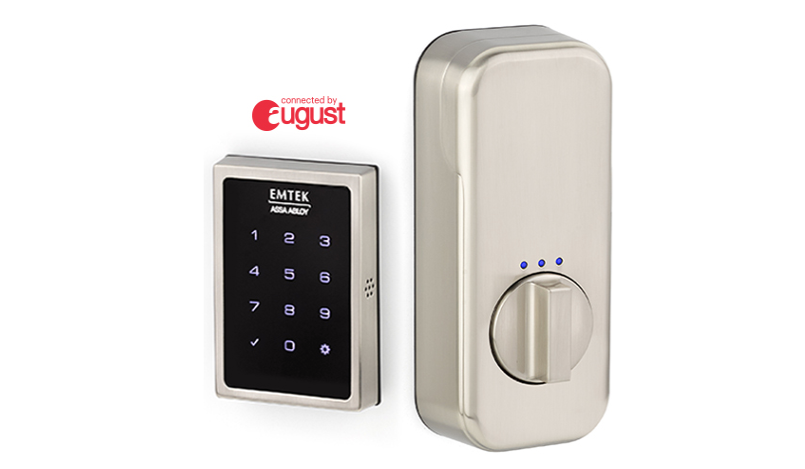

Emtek Empowered™ Motorized Touchscreen Keypad Smart Deadbolt

• Easy to use, Works with Yale Access mobile app
• Auto-Unlock and DoorSense™ technology
• Works with all three voice assistants
• Compatible with leading smart home security systems and hosting platforms
• 9V battery port to prevent lockouts
• Create and manage unlimited entry codes with the smart lock
• Tapered deadbolt latch to assist with latch engagement
• Easy to install, fits standard tubular door prep

Click here to learn more.

Click here to download Installation Instructions

Technical Specifications

• Exterior touchscreen keypad is 2 5/8″ wide by 3 5/8″ tall and 3/4″ deep
• Interior Mechanism is 2 3/4″ wide by 6 7/16″ tall and 2 1/8″ deep
• Powered by 4 AA batteries (Included)

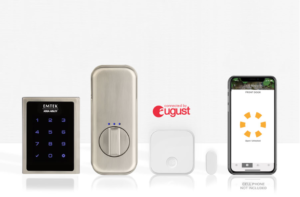

• Works with Yale Access App SMART kit includes: Pre-Installed module, Connect Wi-Fi Bridge, and DoorSense™

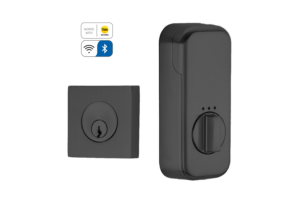

EMPowered™ Motorized Keyed SMART Deadbolt – Works with Yale Access App

• Easy to use, Works with Yale Access mobile app
• Auto-Unlock and DoorSense™ technology
• Works with all three voice assistants
• Compatible with leading smart home security systems and hosting platforms
• 9V battery port to prevent lockouts
• Fits any door between 1-3/4″ to 2-1/4″ thick with a 2-1/8″ bore standard door prep
• Sold as complete set. Includes Latch and Strike Plate
• Non-obtrusive smart lock unit replacing the interior trim
• Convert a standard Emtek deadbolt into a smart-enabled lock with a key

Click here to learn more.

Click here to download Installation Instructions

Interior Mechanism is 2 3/4″ wide by 6 7/16″ tall and 2 1/8″ deep

• Powered by 4 AA batteries (Included)
• Works with Yale Access App SMART kit includes: Pre-Installed module, Connect Wi-Fi Bridge, and DoorSense™

Modern Door Stop

• Hardware Prep: Prep onsite only
• Available Finishes: Flat Black with Black Bumper, Stainless Steel with Black Bumper
• Material: Brass with DuraFlex bumper
• Features: Modern style universal stop
• Options: DuraFlex Bumper available in black
• Dimensions: 1-1/4″ diameter, 1-1/2″ height, 0.5 lbs.
• Anchors: #12 x 1 1/2″ WS, plastic or #12-24 x 1″ FH MS, lead

Concealed Magnetic Catches

• Hardware Prep: Shop prep available for catch, not latch plate
• Contents: With this package, you get two sets of magnetic catches–one installed close to the top of the door and one installed close to the bottom of the door
• Available Finishes: Stainless Steel, Black
• Location: Installed along the side of the door
• Dimensions: 1 1/8″ diameter x 5/16″ deep
